GL-G2L32

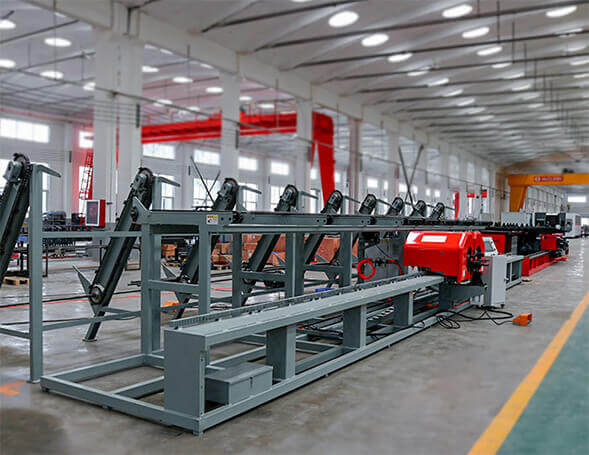

Dual-head bender is a special equipment for bending steel bar. The
equipment have following features: easy operation, convenient
maintenance, economical and practical. Especially applicable to steel bar
mass processing for various engineering and steel bar processing plants.
The heads are driven by servo motors and the bending length of steel bar is digitally controlled.The heads response quickly and high precision
positioning.The bending motor is driven by servo motor,steel bar
processing correct,efficient,energy- saving and can bend many steel bars at the same time.
MACHINE APPLICATION
|
Steel bar diameter |
Φ10mm-Φ32mm rebar |
Bending direction |
Two-way |
||||
|
Bending length |
300-11700mm |
Bending angle |
0-180 ° |
||||
|
Bending speed |
60/s |
Bending space |
≥700mm |
||||
|
Moving speed |
0.6m/s |
Length accuracy |
±1mm |
||||
|
Angle accuracy |
±1° |
Total power |
19kW |
||||
|
Single bending number |
Diameter |
Φ12 |
Φ16 |
Φ18 |
Φ25 |
Φ30 |
Φ32 |
|
Number |
6 |
5 |
4 |
3 |
2 |
1 | |

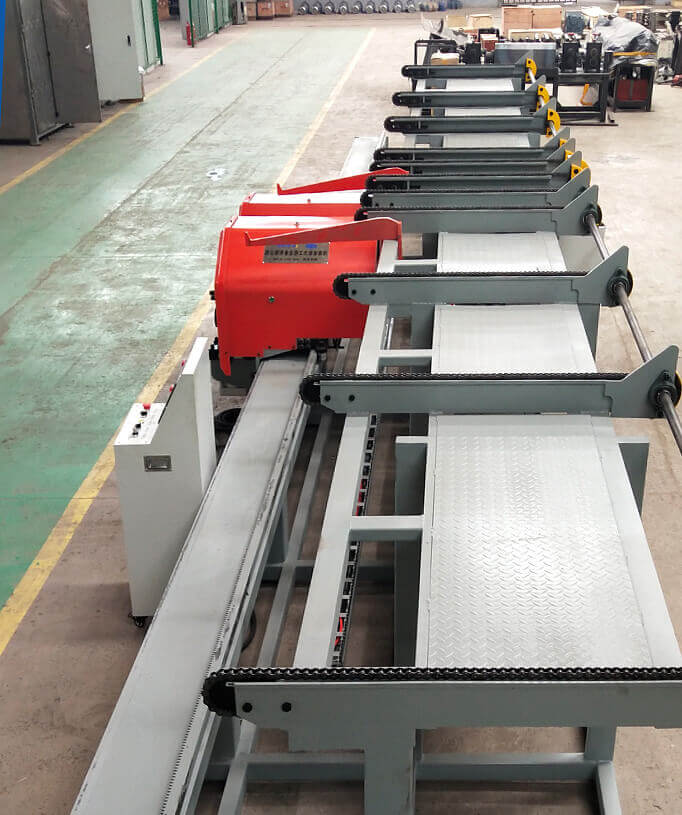

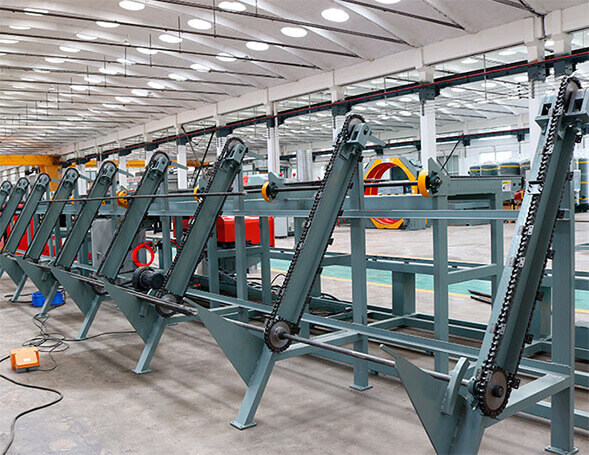

Automatically shifting steel bars to ensure continuous production.
Equipped with high-strength automatic storage rack ,it can shift steel bars automatically and has strong bearing capacity and low labor cost to achieve continuous production.

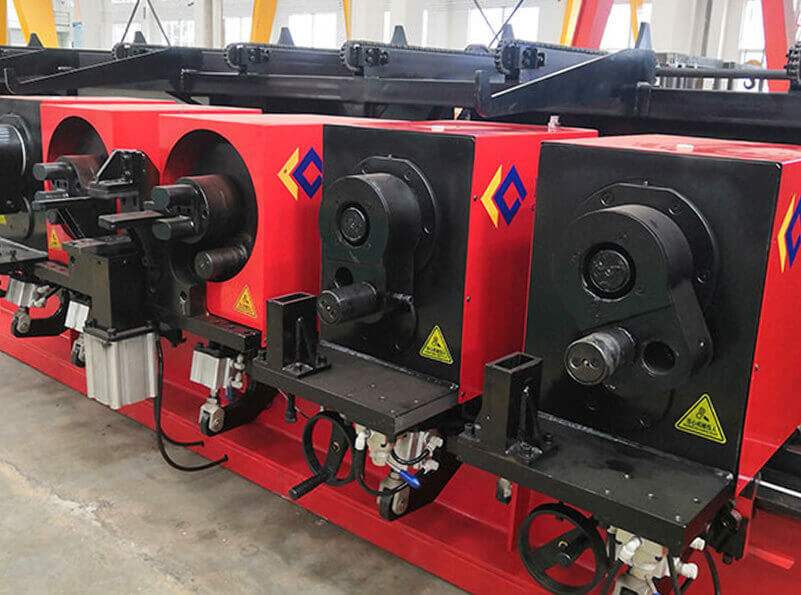

Five-way simultaneous bending,high work efficiency
Equipped with five independent bending centers ,which can bend various shapes of stirrups simultaneously or independently,multiple steel bars are formed at one time ,and production efficiency is greatly improved .

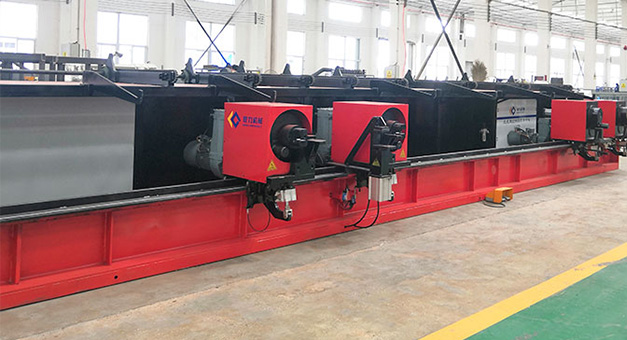

Host machine with reasonable structure
Strong bending force and precise bending angle , bending range from 0 to 180°.
High-strength bending platform guide rails with high quality
Bending platform is equipped with high-strength moving guide rail , and not easily deformed.

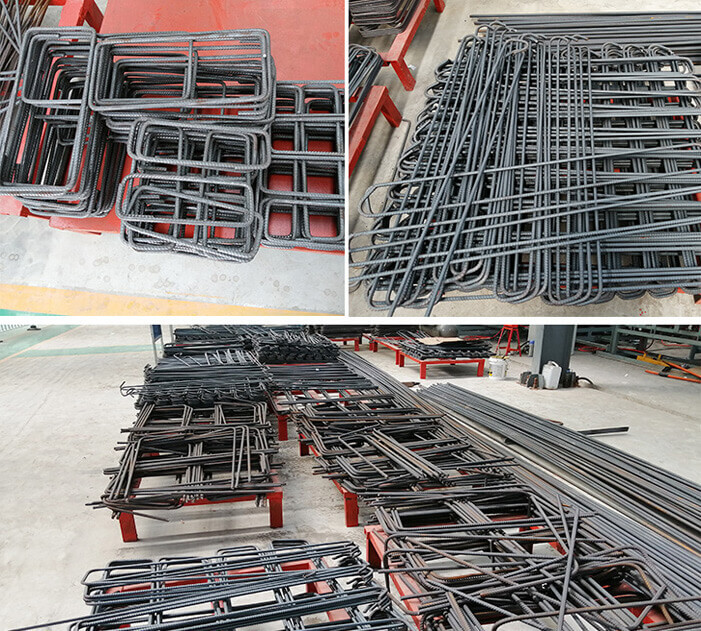

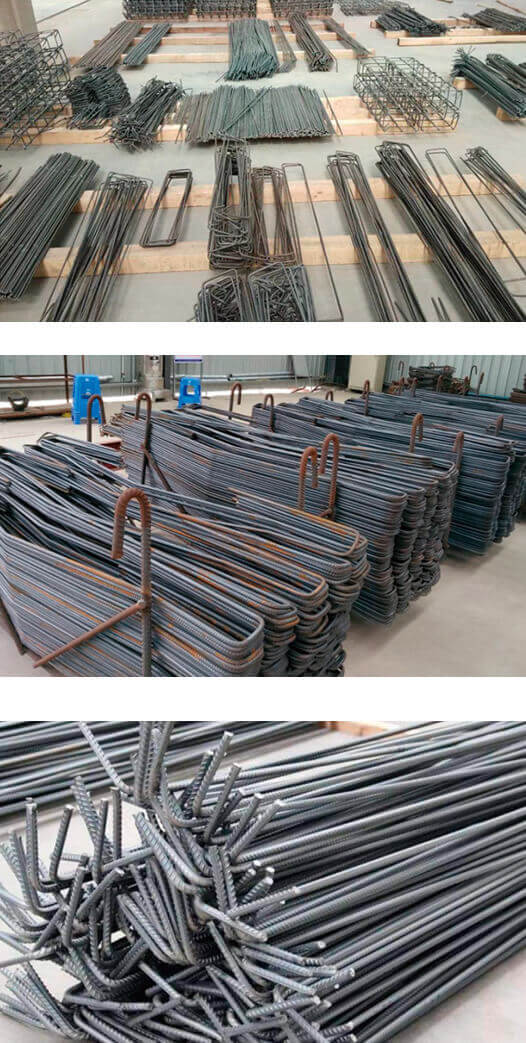

Machined Shape
|
Steel bar diameter |
Φ10mm-Φ32mm rebar |
Bending direction |
Five-way |
||||
|
Bending length |
300-11700mm |
Bending angle |
±160 ° |
||||
|
Bending speed |
70/s |
Bending space |
≥700mm |
||||
|
Moving speed |
0.5-0.9m/s |
Length accuracy |
±1mm |
||||
|
Angle accuracy |
±1° |
Total power |
30kW |
Henan Gengli Engineering Equipment Co.,Ltd. is a high and new tech enterprise, specialized in R & D, and production of concrete supporting equipment. Located in Mengjin, Luoyang, it covers an production area of 60000 m2, with the strong independent innovation ability, its product design capability and manufacturing capability is leading in the same domestic industry. It’s the first to get ISO9001 Quality System Certification in the industry in China, and the brand “Gengli” is China famous brand.
