Factory direct sales quality assurance

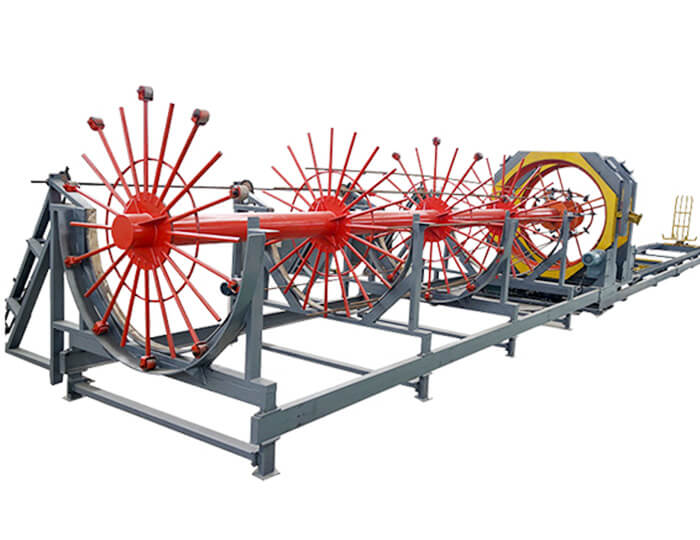

CNC rebar cage welding machine
  • Diameter of main rebar:Φ12-40mm
  • Diameter of winding rebar:Φ5-16mm
  • Length of cage:9-27m
  • Space of winding rebar:50-50mm
Performance advantages

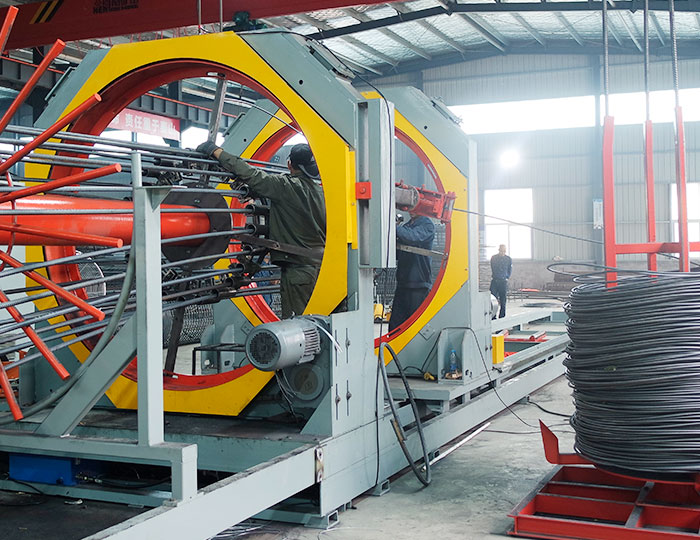

High processing speed

Normally, about 6-8 people are needed for material preparation and welding,it can process more than 20 finished 12-meter cages a day, the working efficiency is very high

National standard for quality of finished products

Using CNC mechanized operation, the spacing between the main rebar and the winding rebar is uniform.

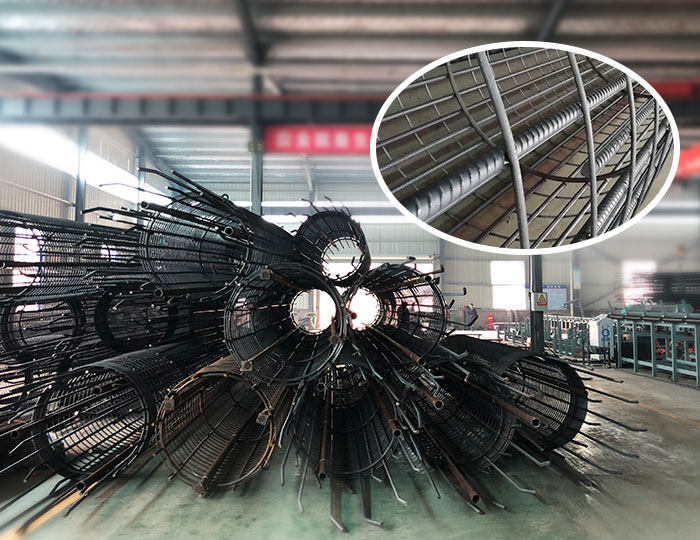

Solder joints are firm and reliable

The main rebar have high distribution accuracy, good consistency, uniform spacing of stirrups.

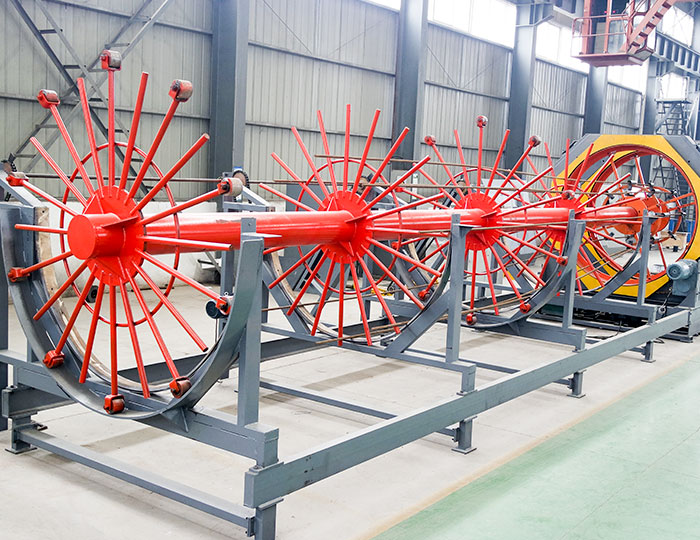

Modular design

Loading frame, main machine and discharging machine can be disassembled and assembled quickly.

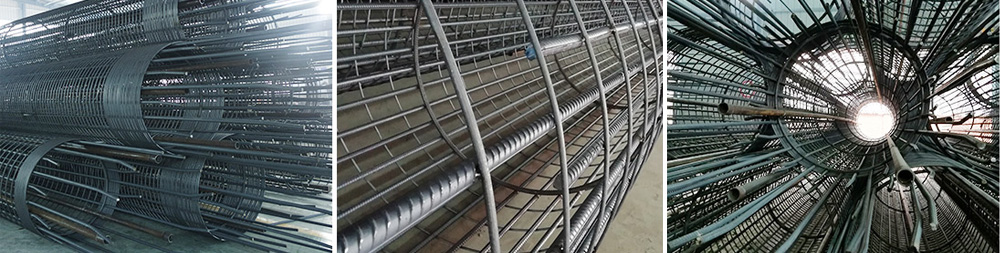

Machined Shape

Technical parameters
Modle GL-1500 GL-2000 GL-2500
Pile diameter of cage(mm) 300-1500 400-2000 800-2500
Length of cage(m) 12 18 24 27 12 18 24 27 12 18 24 27
Max.Weight of cage(kg) 4500 6000 8000
Length of cage(m) 9--27m
Diameter of winding rebar(mm) ∅5--∅16
Space of winding rebar(mm) 50--500
Diameter of main rebar(mm)
Pressure of hydraulic station(Mpa) ∅12--∅40
Total reted power(kw) 15 23 27
Size LxWxH(m) 28.5x5x2.5 38.5x5.5x2.5 46.5x5.5x2.5 54.5x5.5x2.5 28.5x8x3.3 38.5x8x3.3 46.5x8x3.3 54.5x8x3.3 28.5x8.5x3.5 38.5x8.5x3.5 46.5x8.5x3.5 54.5x8.5x3.5
Weight(kg) 12500 16000 18000 20000 18000 21000 24000 28500 18000 21000 24000 28500
