CHARACTERISTICS

  • 1.Round steel adjustable.
  • 2.The error is small, minimum material loss.
  • 3.This machine is suitable for straightening and cutting
  • the round bar or cold drawn steel bar.
  • 4.High efficiency, straightening speed.
MORE DETAILS +
Item Parameter Item Parameter
Traction speed 48m/min Diameter of straightening φ4-12mm
Length cutting error ±10mm Determined length 300-9000mm(can be prolonged)
Traction motor power 7.5kw Degree of straightening ±2mm/m
Weight 500kg Dimension 2200×730×1150mm

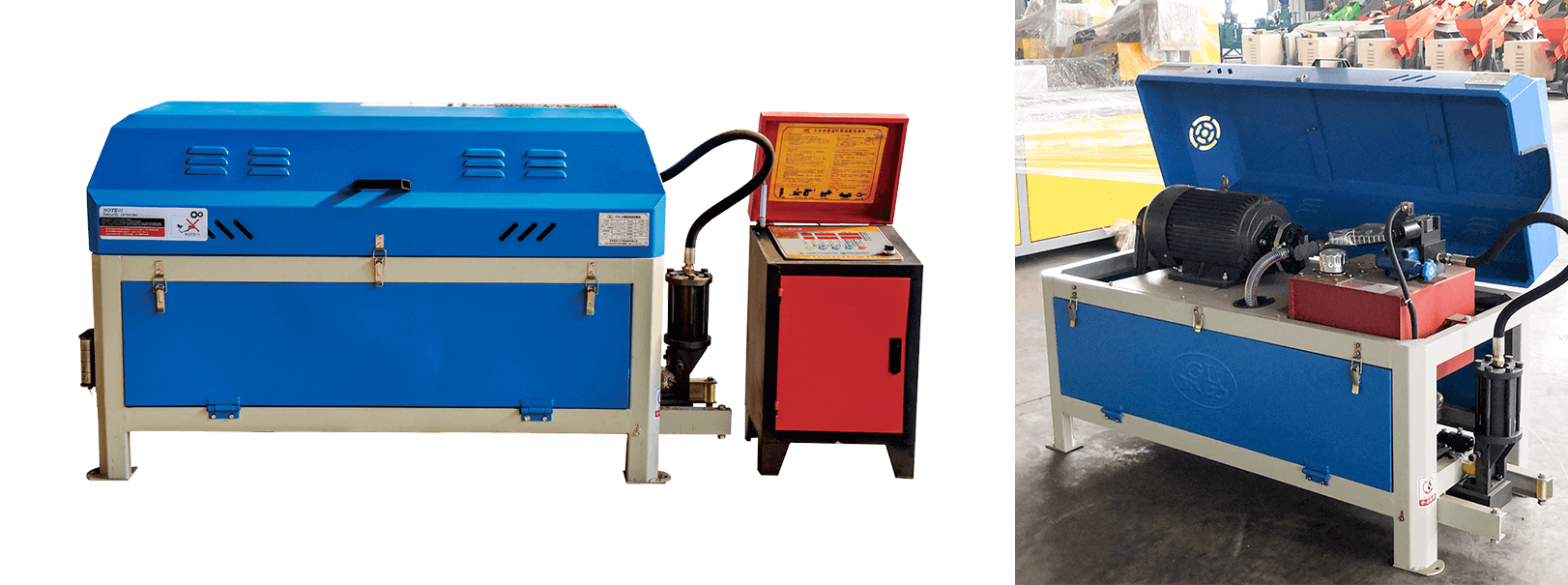

Rebar Straightening and Cutting Machine

GT6-14

Performance advantages

High automation and good safety.

This machine has the advantages of high automation and fast traction speed,and also equipped with auto counter stop device for safety concerns.

The error is small, minimum material loss. To different staff members applicable.

Straightened bars almost have no surface scratch and have good straightness and less strength loss

Simple operation and high production efficiency.

This machine is suitable for straightening and cutting the round bar or cold drawn steel bar.

High efficiency, straightening speed.

MORE DETAILS +
Item Parameter Item Parameter
Traction speed 48m/min Diameter of straightening φ4-12mm
Length cutting error ±10mm Determined length 300-9000mm(can be prolonged)
Traction motor power 7.5kw Degree of straightening ±2mm/m
Weight 500kg Dimension 2200×730×1150mm

High automation and good safety.

The error is small, minimum material loss. To different staff members applicable.

This machine is suitable for straightening and cutting the round bar or cold drawn steel bar.

Simple operation and high production efficiency.

Straightened bars almost have no surface scratch and have good straightness and less strength loss.

MORE DETAILS +
Traction speed 45m/min Straightening diameter range Φ4-Φ16mm
Fixed length 300-9000mm Rated power 27.5KW
Cutting length tolerance ±10mm Machine weight 1300kg
Straightening degree ±2mm/m Dimension L2900×W1150×H750mm

___ ABOUT US

GENGLI MACHINERY

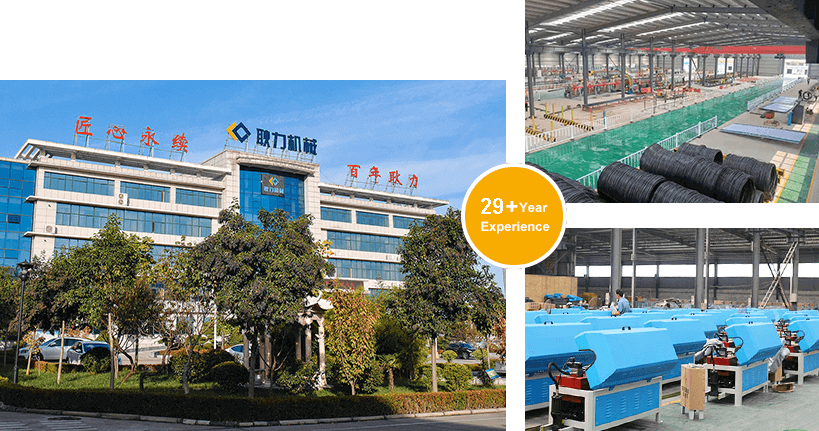

Henan Gengli Engineering Equipment Co Ltd. is a high and new tech enterprise, specialized in R&D, and production of concrete supporting equipment Located in Mengjin, Luoyang it covers an production area of 60000 m2,with the strong independent innovation ability, its product design capability and manufacturing capability is leading in the same domestic industry.

  • 60000
    60,000㎡ standardized
    workshop
  • 60
    More than 60 Practical
    patents
  • 8
    8 fully intelligent
    production lines
  • 150
    150 Service outlets
