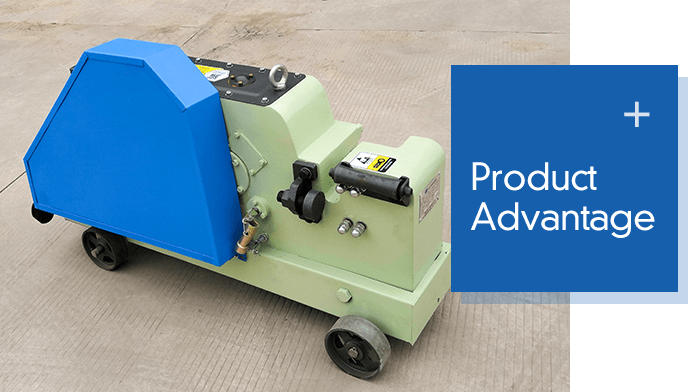

GQ40/42/50 Steel Bar Cutting Machine

Common carbon steel and hot-rolled round steel and rebar in various reinforced concrete in construction projects.
GQ40/42/50 Steel Bar Cutting Machine
  • Small size, light weight, compact structure, strong and reliable.
  • Good lubricity: the box body is closed structure, gear splash lubrication.
  • Low functional loss: due to the improvement of lubrication conditions, the shaft end of the gear is drawn by rolling, with low resistance.
MOER+

Basic parameters

Model GQ40 GQ42 GQ50
Common carbon steel Φ6-40 Φ6-40 Φ6-45
Grade 2 threaded steel Φ6-32 Φ6-36 Φ6-38
Flat steel <70x15 <70x15 <80x18
Square steel <32x32 <32x32 <40x40
Angle steel <50x50 <50x50 <63x63
Way of control Clutch control Clutch control Clutch control
Times of shear (times/min) 32 32 28
Motor power (KW) 3kW-2 3kW-2 4kW-2
Voltage (V/HZ) 380/50Hz 380/50Hz 380/50Hz

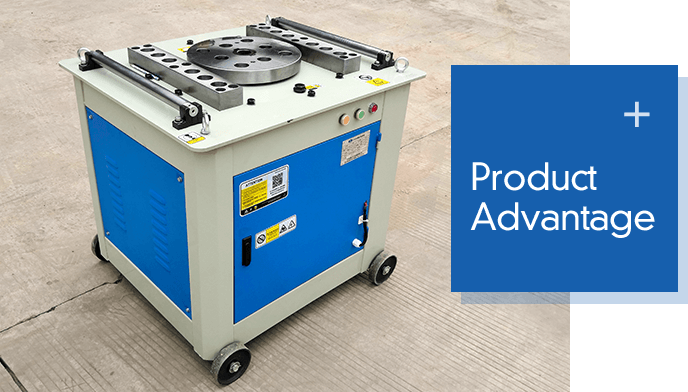

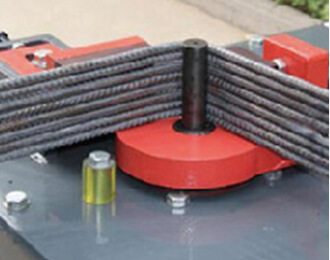

GW40 Steel Bar Bending Machine

GW40 Steel Bar Bending Machine
  • The main shaft adopts cylindrical bearings, no wear and no oiling.
  • Two operation modes: manual and foot switch. Feel free to change, simple and convenient.
  • Specially added eccentric sleeve, ultra-high hardness accessories, adjustable baffle, longer service life.
  • Wear-resistant, compressive, and strong torsion.
MOER+

Basic parameters

Model GW40 GW50
Common carbon steel Φ6-40 Φ6-45
Grade 2 threaded steel Φ6-32 Φ8-42
Disc diameter (mm) 350mm 400mm
Bending speed (times/min) 5—10 5—10
Motor power 3kW-4 4kW-4
Voltage 380V 380V

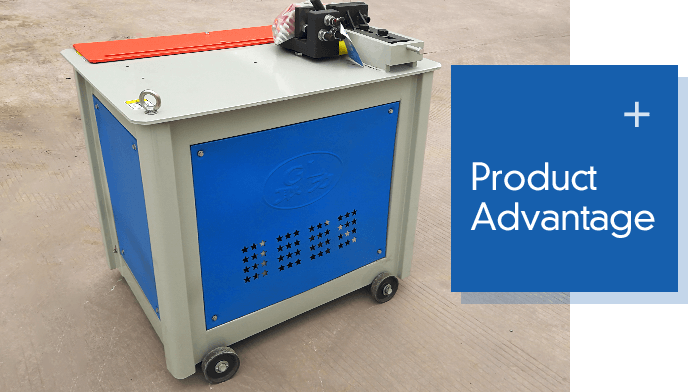

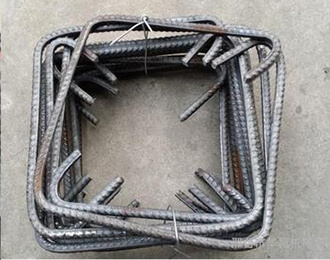

GW25 Steel bar Stirrup Bender

GW25 Steel bar Stirrup Bender
  • Small size, light weight, compact structure, strong and reliable.
  • Good lubricity: the box body is closed structure, gear splash lubrication.
  • Low functional loss: due to the improvement of lubrication conditions, the shaft end of the gear is drawn by rolling, with low resistance.
MOER+

Basic parameters

Model GW25
Steel materials for bending(mm) Round steel Φ4-25
Grade 2 threaded steel Φ4-22
Bending speed(times/min) 28次/分
Square steel <32x32
Angle steel <50x50
Way of control Clutch control
Times of shear (times/min) 32
Motor power (KW) 3kW-2
Voltage (V/HZ) 380/50Hz

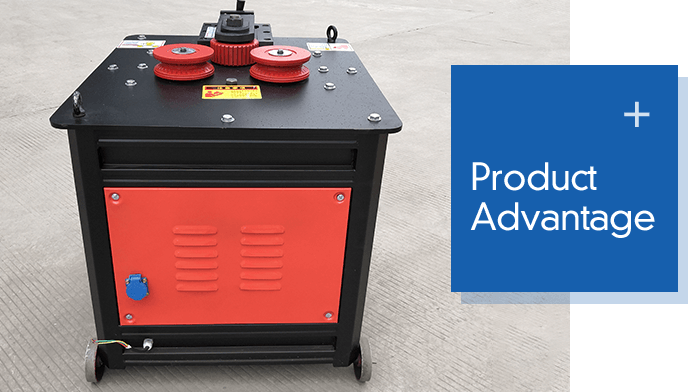

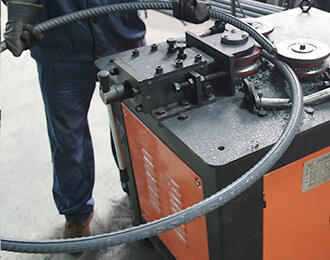

GWH32 Steel Bar Arc Bending Machine

GWH32 Steel Bar Arc Bending Machine
  • The steel bar bending machine adopts the transmission structure of double driving wheels, forming in one time.
  • Simple operation, convenient use, strong and durable.
  • The gearbox gear is made of high steel material and has a long service life.
  • The replacement work can also do arc processing on angle steel, flat steel and round steel.
MOER+

Basic parameters

Model GWH24 GWH32
Diameter of bent steel bar 12-24mm 25-32mm
Radius of bent steel bar ≥10cm ≥15cm
Power 3kW 4kW
Weight 360kg 380kg
Boundary dimension 800*600*700mm 920*760*800mm
