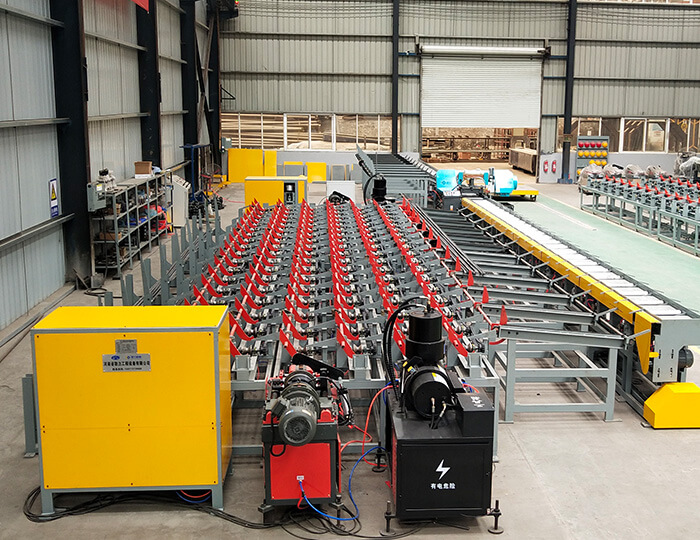

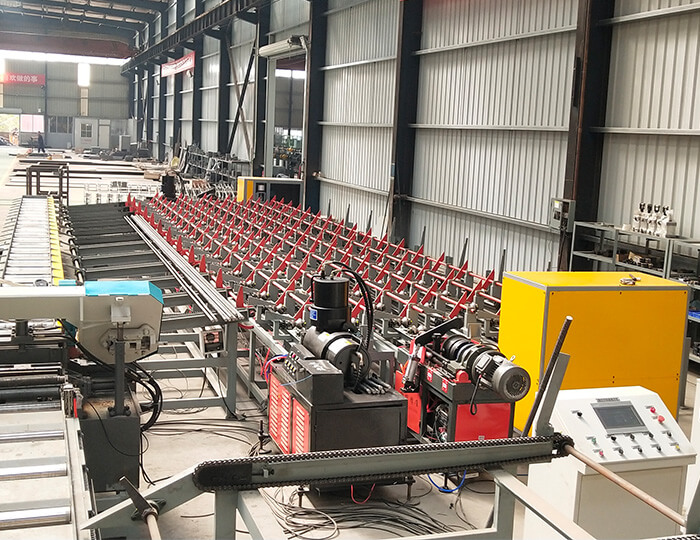

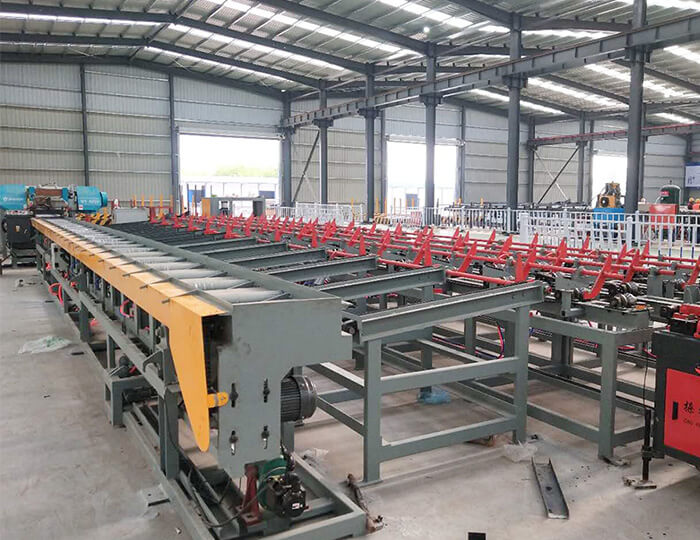

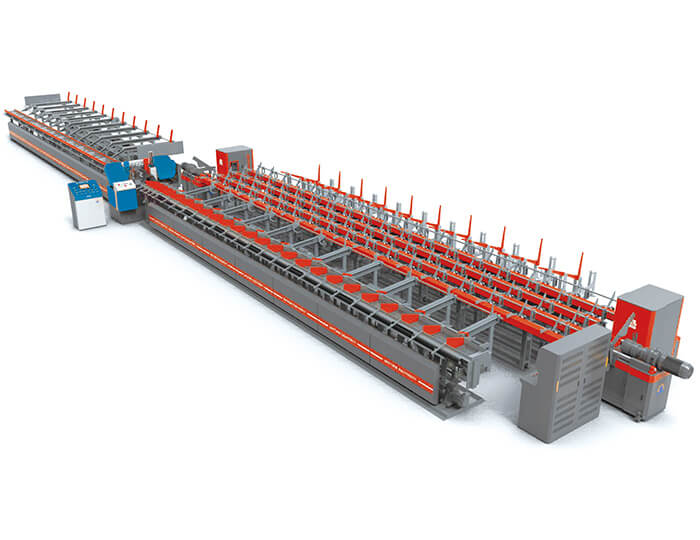

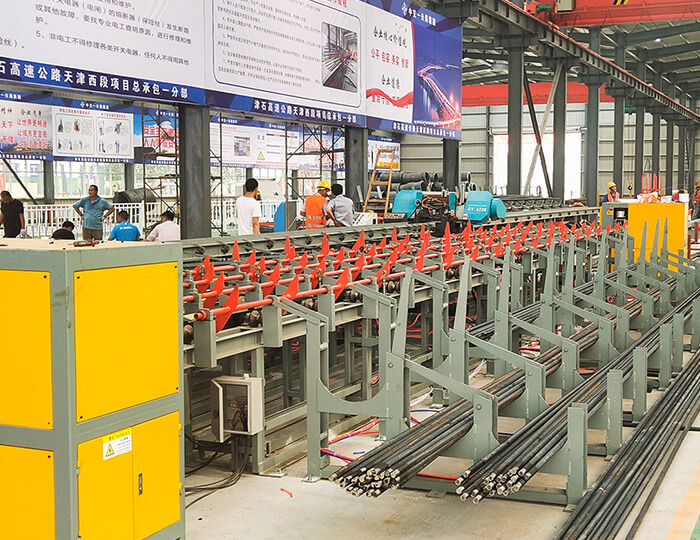

GL-450L CNC steel bar sawing, upsetting, threading and polishing production line

Maximum machining diameter (round steel): ≤ 50 mm
Rebar conveyor speed: 58-62m/min
Thread length: ≤90 mm
Total power/total power consumption: 40 Kw
Single-end threading time: 25S～40S

Performance advantages Machined Shape Technical parameters Related Products

Performance advantages

Using gantry type sawing knife, sawing speed is fast, high precision

The structure of the steel bar is cut by the gantry saw blade, the sawing speed is fast, and the sawing gap is narrow.

Large sawing width, high-quality sawing

Large sawing width, high sawing output, large sawing force, and more steel bars processed at the same time.

Upsetting and threading can be used separately

The equipment has two key parts combination of upsetting and threading, and these two parts can be separated and used as independent equipment.

The operation is simple and easy to use, and the steel bar processing efficiency is high

The operation interface is simple, easy to learn and understand, which greatly reduces the labor intensity of operators and improves production efficiency.

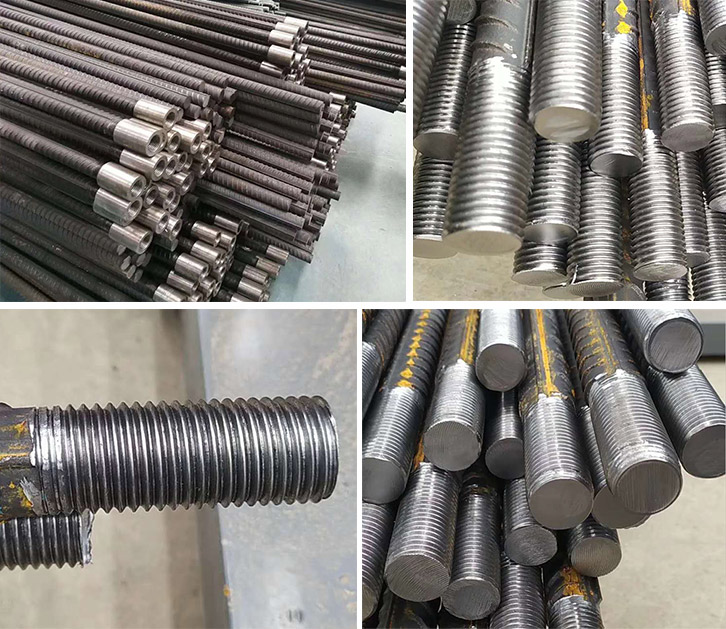

Machined Shape

Technical parameters

Serial number	project name					Technical Parameters
1	Maximum machining diameter (round steel)					≤ 50 mm
2	Rebar conveying line speed					58～62 m/min
3	Maximum length of feeding line					12000 mm
4	Maximum length of rewinding line					12000 mm
5	Effective width of saw blade					450 mm
6	Rebar conveying speed					58-62m/min
7	Thread length					≤90 mm
8	Single head wire time					25s～40s
9	Thread diameter range					φ16～φ40mm
10	Single head polishing time					3s～5s
11	Silo level					3*2
12	Operating Voltage					380V
13	Total power / total power consumption					40 Kw
14	Operating temperature					-10º～50º
15	working pressure					≥0.4MPa
16	Equipment weight (complete set of machine)					18T
17	Machine size					26000×6500×1700 mm
Rebar diameter (HRB400MPa)	φ16	φ20	φ25	φ28	φ32	φ35	φ40	φ45	φ50
Number of steel bars	28	22	18	16	15	12	11	10	9
