Factory direct sales quality assurance

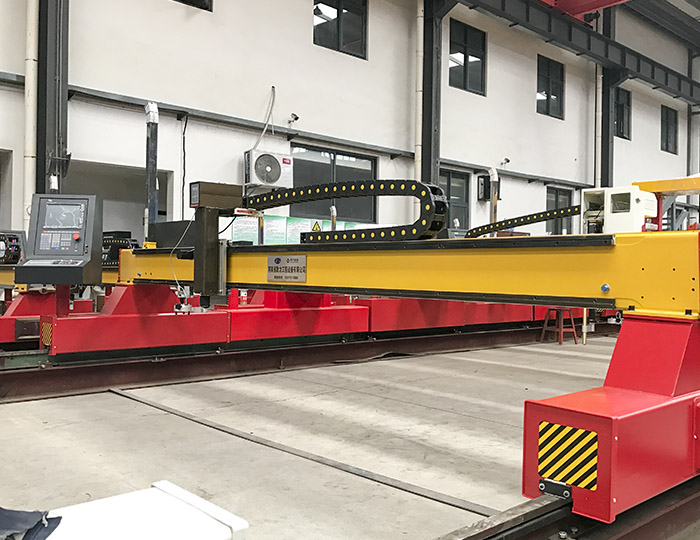

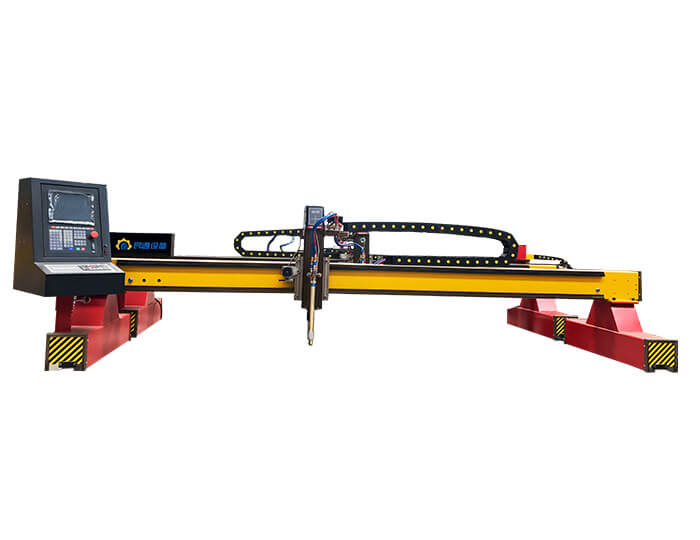

GL-250 Gantry CNC plasma cutting machine
  • Cutting method:Flame cutting,Plasma cutting
  • Cutting thickness:Flame cutting: 6-200mm,Plasma cutting(unfixed)
  • Straight line positioning accuracy:±0.2㎜
  • Automatic height adjustment accuracy:±0.3㎜
Performance advantages

It can cut straight lines and circular arc shapes ; Graphic of dynamic and static display,intuitive

CNC plasma/ flame cutting system could be programmed directly on the machine to cut straight lines a

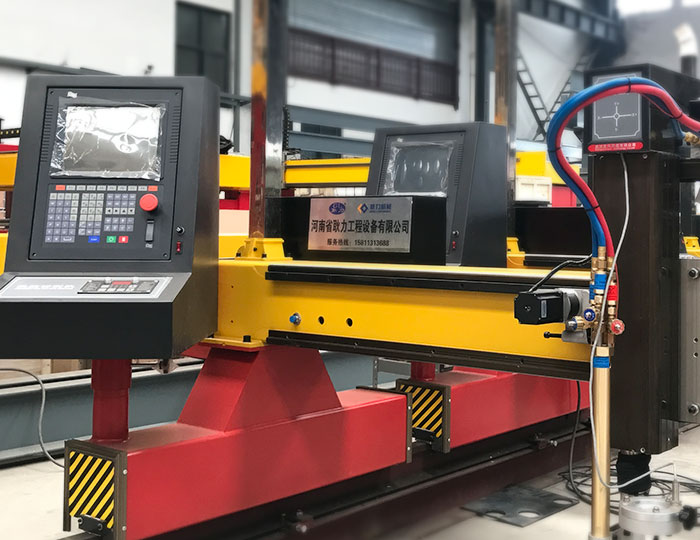

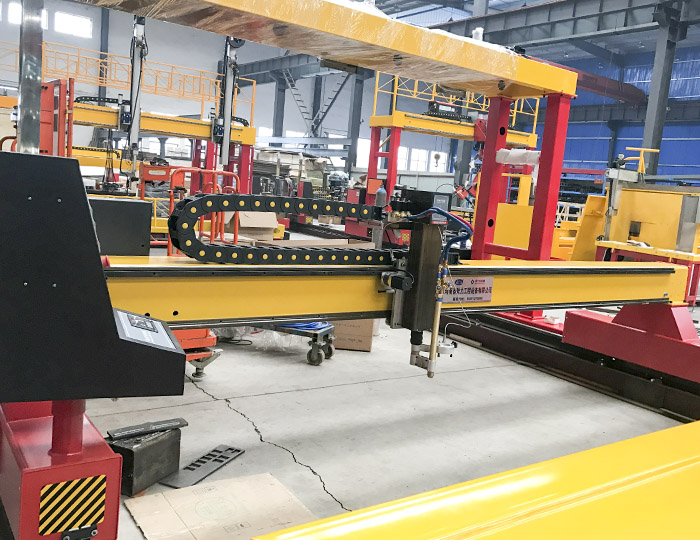

Bilateral drive ,heavy-duty body design

Bilateral train tracks of 24kg,beam annealing eliminates stress.

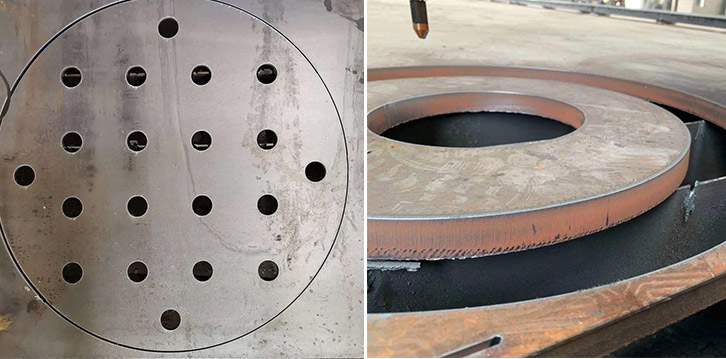

Machined Shape

Technical parameters

Serial number

Item

Reachable indicator.

1

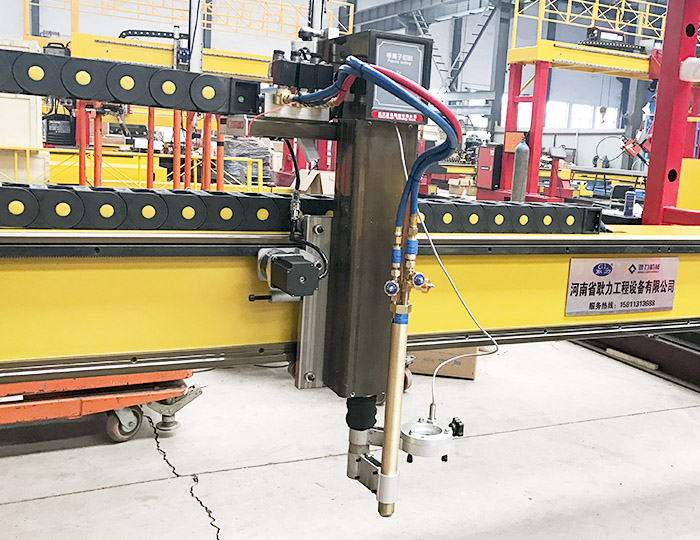

Cutting torch lifting stroke

1-150mm

2

Cutting thickness

Flame cutting: 6-200〖Punching hole 80〗mm

Plasma cutting :depending on the size of plasma power

3

Rail installation accuracy

1).Side straightness of main rail

2).Side straightness of secondary rail

3).Parallelism of longitudinal rail surface and horizontal plane

4

Intersection offset

±0.2mm

A) Positioning accuracy,repeat accuracy:In accordance with JB/T5102-1999 standard

B) Dimensional accuracy,cutting surface quality:In accordance with JB/T10045.4-1999 standard

5

Straightness

±0.2mm

6

Roundness

±0.2mm

7

Diagonal difference

±0.5mm

8

Straight line repeated positioning accuracy

±0.2mm

9

Automatic height adjustment accuracy

±0.3mm

10

Transverse linear positioning accuracy

±0.2mm

11

Longitudinal linear positioning accuracy

±0.2mm

12

Running speed

0-12000mm/min

13

Speed specification error

≤±5%

14

Cutting speed

Flame 0-800mm/min;Plasma0-6000mm/min

15

Roughness of cutting surface

Flame ≤100um;plasma≤150um

Plasma

16

Flatness of cutting surface

≤2.5/100*T

17

Dimensional accuracy ,straightness accuracy

≤2mm
