Easy operation, just press "ON
Operation data like emission temperature, exhaust pressure, oil pressure, operation duration and voltage are shown.Excellent comprehensive performance
Reliable European-standard key electrical control elements ensure stable operation, fine technology.

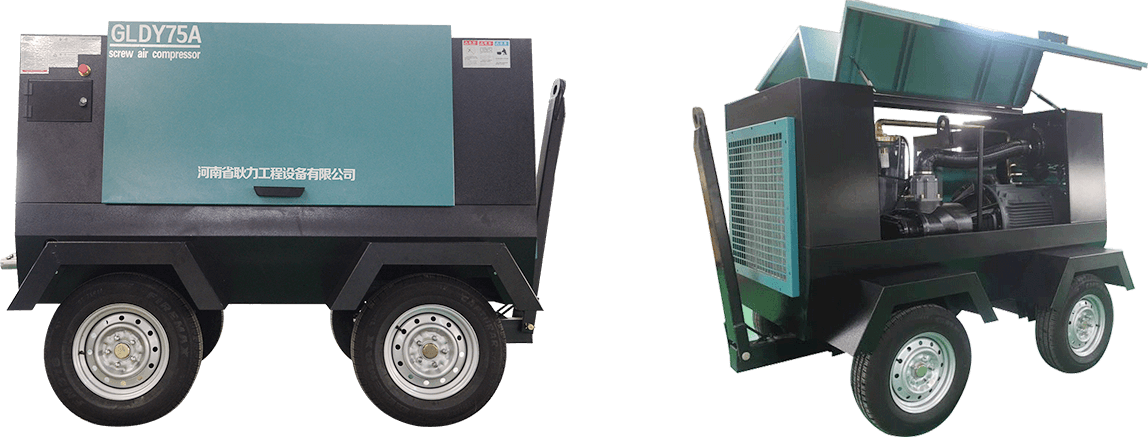

| Model | GLDY75A | Displacement | 13m3/min |
| Working Pressure | 0.8MPa | Motor Power | 75kw |
| Motor Speed | 2985r/min | Drive Type | Direct connect |
| Noise value in 1m | 82±3 dB(A) | Cooling Type | Air cool |
| Lubrication oil volume | 50L | Outlet gas lubricating oil carry | 1-3ppm |
| Start Type | Star triangle start | Outlet size | 11/2'' 3/4'' |
| Total Weight | 1500kg | Dimension | 2305×1660×1710mm |

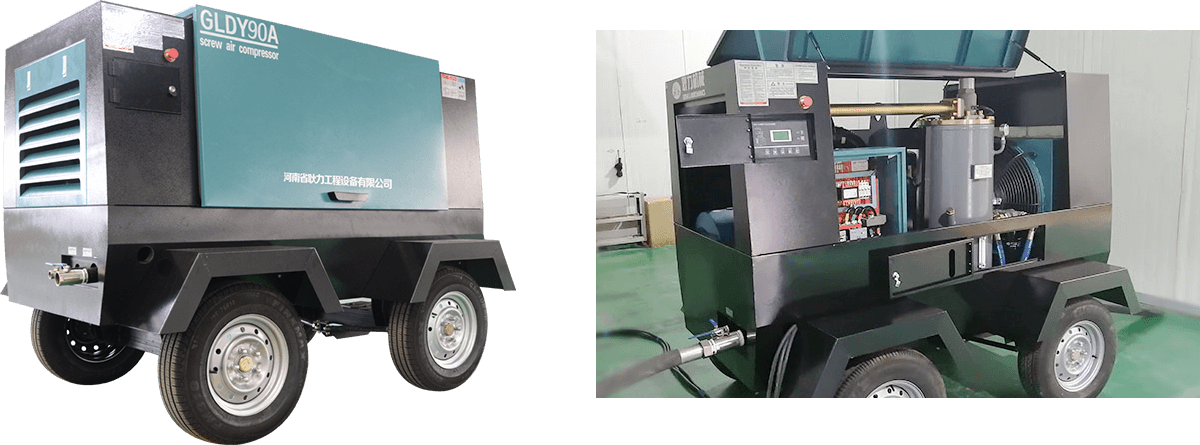

| Exhaust volume | 16（m3/min） | Motor rotating speed | 2985rpm |
| Exhaust power | 0.8MPa | Motor power | 90Kw |
| Noise value at one meter | 82±3dBA | Motor protection level/Insulation | IP55F |
| Outlet gas lubricating oil carry | 1～3PPM | Voltage &Frequency | 380V/50Hz |
| Lubricating oil quantity | 70L | long | 2305mm |
| Cooling method | Air cooling | wide | 1660mm |
| Drive way | Direct drive | high | 1910mm |
| Exit size | DN50 | Total weight | 1620kg |

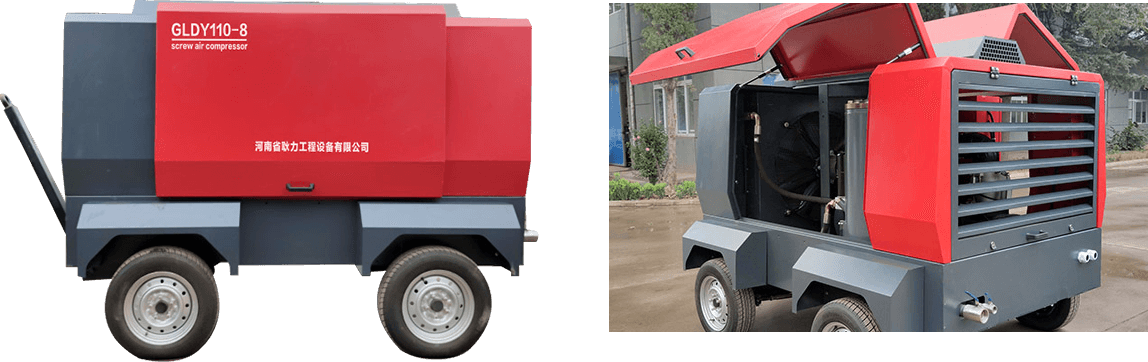

| Exhaust volume | 24m3/min | Motor rotating speed | 1485rpm |
| Exhaust power | 0.8MPa | Motor power | 110Kw |
| Noise value at one meter | 82±3dBA | Motor protection level/Insulation | IP55F |
| Outlet gas lubricating oil carry | 1～3PPM | Voltage &Frequency | 380V/50Hz |
| Lubricating oil quantity | 70L | long | 2400mm |
| Cooling method | Air cooling | wide | 1600mm |
| Drive way | Straight league | high | 1910mm |
| Exit size | DN50 | Total weight | 2150mmkg |
Performance advantages
The main machine adopt the design concep of large rotor low speed
The Main shaft speed is 1480rpm, low noise and low vibration
Two-stage mainframes are more energy-efficient than single-stage mainframes.
Large starting torque, more reasonable structure, energy saving.

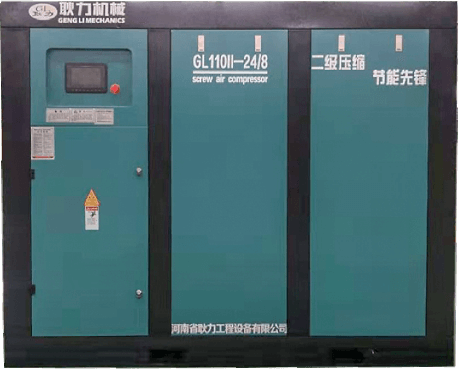

| Model | GL110A-II | Displacement | 24m3/min |
| Working Pressure | 0.8MPa | Motor Power | 110kw |
| Motor Speed | 1485r/min | Drive Type | Direct connect |
| Noise value in 1m | 82±3 dB(A) | Cooling Type | Air cool |
| Lubrication oil volume | 70L | Outlet gas lubricating oil carry | 1-3ppm |
| Start Type | Star triangle start | Outlet size | DN80 |
| Total Weight | 2150kg | Dimension | 2400×1600×19mm |
Performance advantages
Operator understands operation condition at real time, include operation status and failures.
Reliable European-standard key electrical control elements ensure stable operation, fine technology.
Operation data like emission temperature, exhaust pressure, oil pressure, operation duration and voltage are shown.
It monitors operation status at real time and reminds and wams the operator in case of any obnormality.

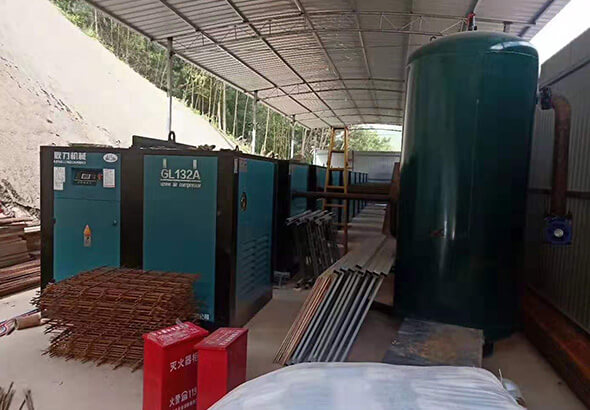

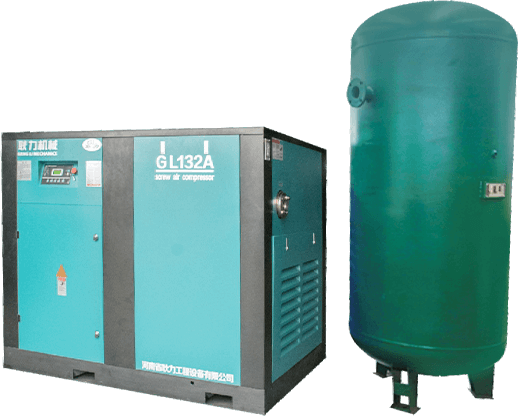

| Model | GL132 | Displacement | 24m3/min |
| Working Pressure | 0.8MPa | Motor Power | 132kw |
| Motor Speed | 1485r/min | Drive Type | Direct connect |
| Noise value in 1m | 82±3 dB(A) | Cooling Type | Air cool |
| Lubrication oil volume | 70L | Outlet gas lubricating oil carry | 1-3ppm |
| Start Type | Star triangle start | Outlet size | DN65 |
| Total Weight | 2350kg | Dimension | 2100×1580×1650mm |
