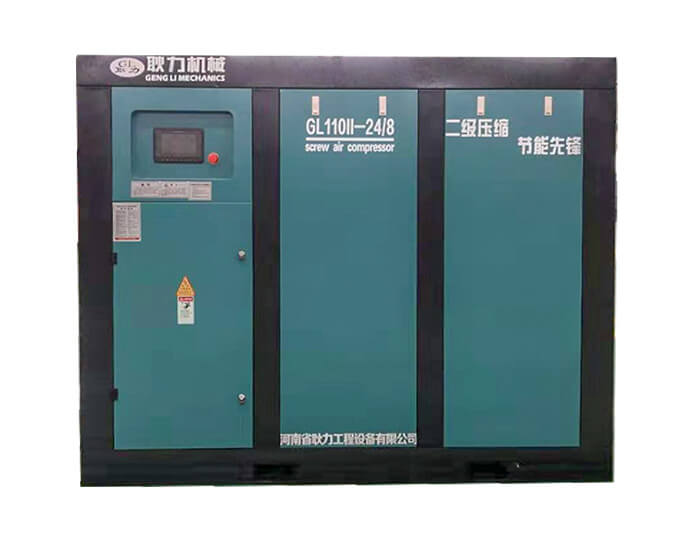

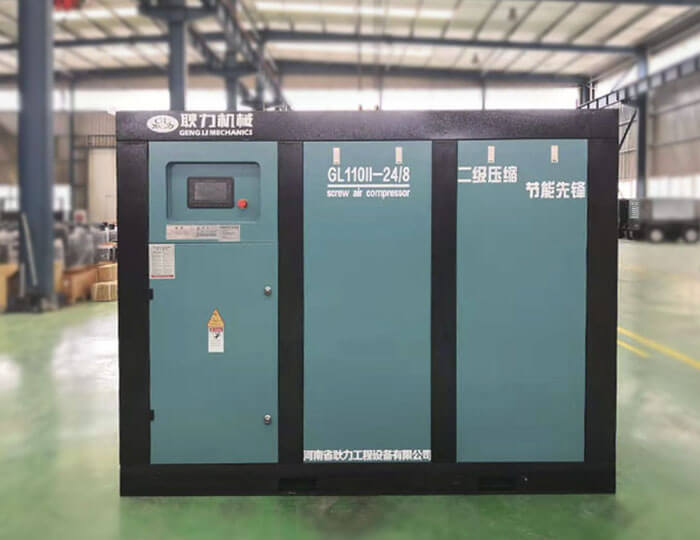

GL110A-II Electric Screw Air Compressor
  • Working Pressure:0.8MPa
  • Motor Power:110kw
  • Start Type:Star triangle start
  • Lubrication oil volume:70L
Performance advantages

The main machine adopt the design concep of large rotor low speed

The Main shaft speed is 1480rpm, low noise and low vibration

Two-stage mainframes are more energy-efficient than single-stage mainframes.

Large starting torque, more reasonable structure, energy saving.
Technical parameters
Model GL110A-II Displacement 24m3/min
Working Pressure 0.8MPa Motor Power 110kw
Motor Speed 1485r/min Drive Type Direct connect
Noise value in 1m 82±3 dB(A) Cooling Type Air cool
Lubrication oil volume 70L Outlet gas lubricating oil carry 1-3ppm
Start Type Star triangle start Outlet size DN80
Total Weight 2150kg Dimension 2400×1600×19mm
