Factory direct sales quality assurance

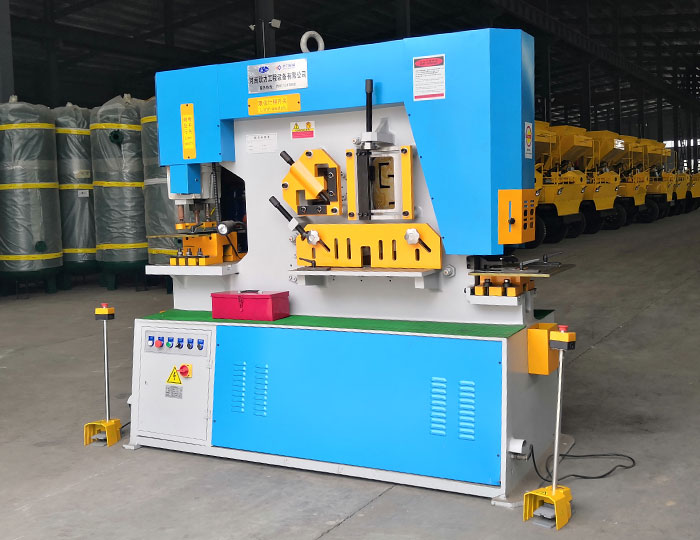

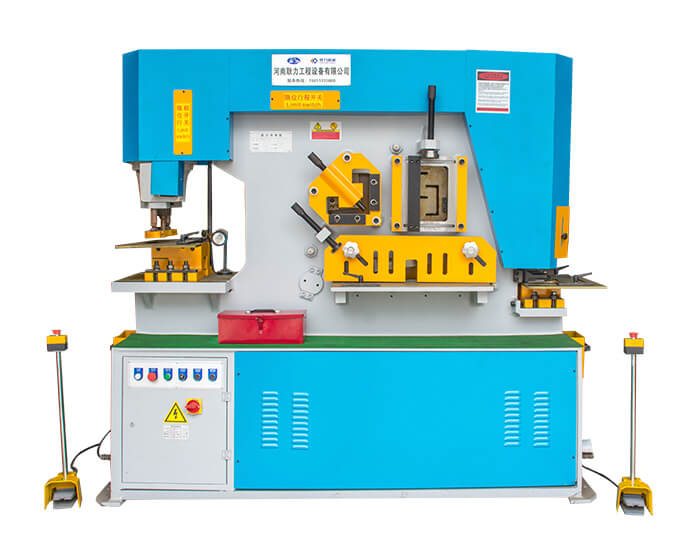

Hydraulic combined punching and shearing machine
  • Punching force(T):90、120、160
  • Maximum shear thickness (mm):20、25、30
  • Maximum punching diameter (mm):30、35、38
  • Stroke times(min):12、10、10
Performance advantages

Reasonable structure,lightweight and reliable

Hydraulic transmission,reasonable structure,light weight,low noise,light and reliable ,overload performance.

Machine has strong universality and support special processing

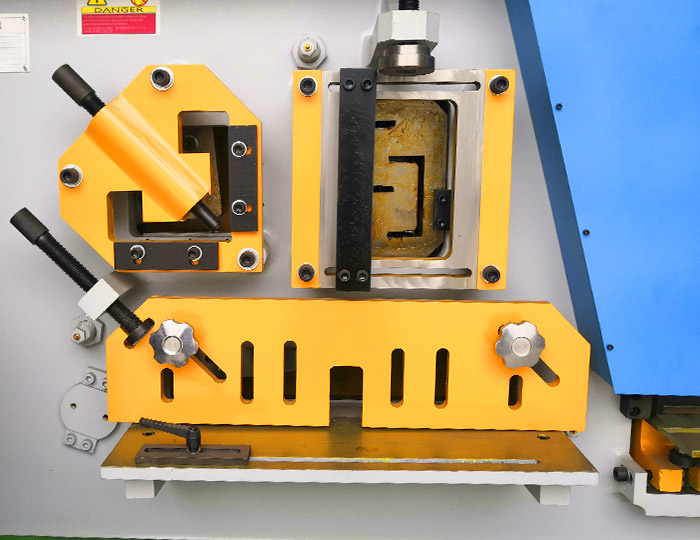

Punching hole and die-cutting station can cut ,stamp and bend various special shapes if replaced with other accessories.

Top processing technology

Adopting top processing technology ,the whole frame is welded; With high temperature quenching process to make the frame high rigidity and high strength .

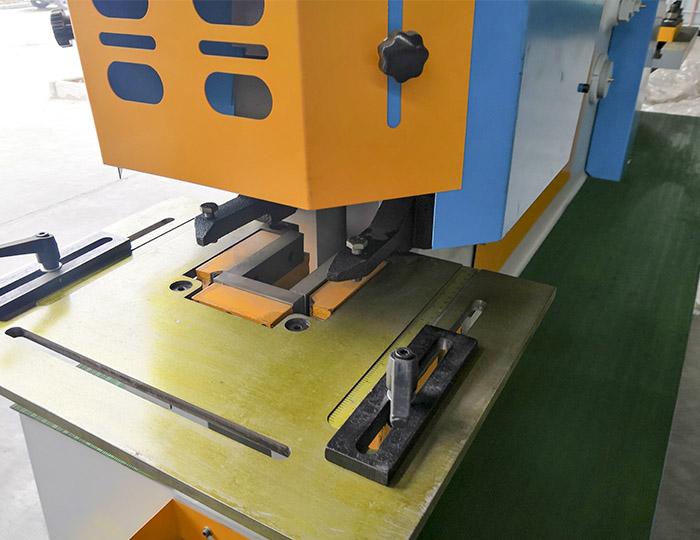

Cutter are more durable

Cutter has a longer service life after special hot vacuum treatment.
Technical parameters

Model

Q35Y-20

Q35Y-25

Q35Y-30

Punching force

90T

120T

160T

Maximum shear thickness

20mm

25mm

25mm

Shear size/ per stroke (Thickness*Width)

20×280mm

25×280mm

30×305mm



10×430mm

16×550mm

20×550mm

Stroke times

12min

10min

10min

Punching thickness

20mm

25mm

26mm

Maximum punching diameter

30mm

35mm

38mm

Main motor power

5.5KW

7.5KW

11KW

Dimension

1860×800×1900mm

2355×960×2090mm

2680×1040×2300mm
