Factory direct sales quality assurance

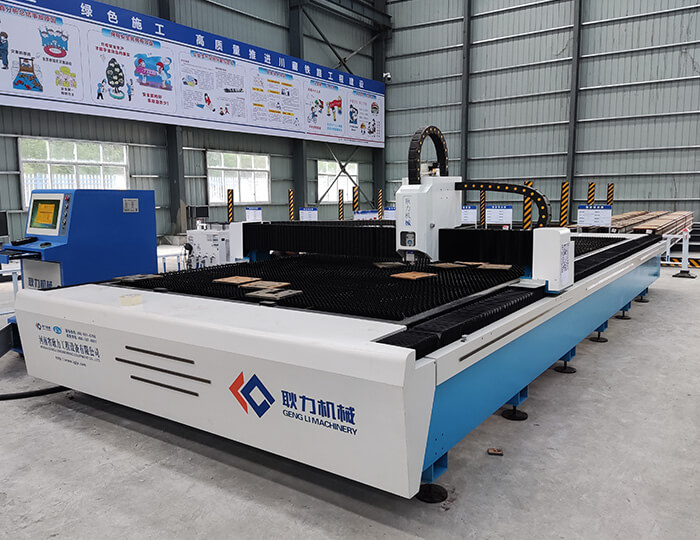

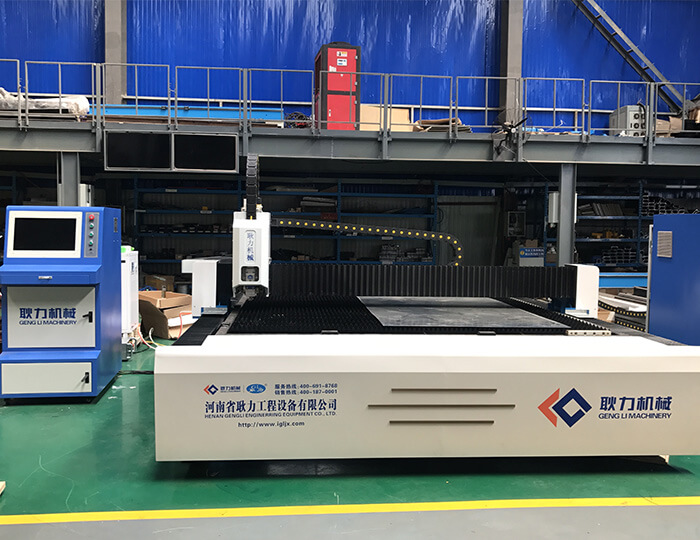

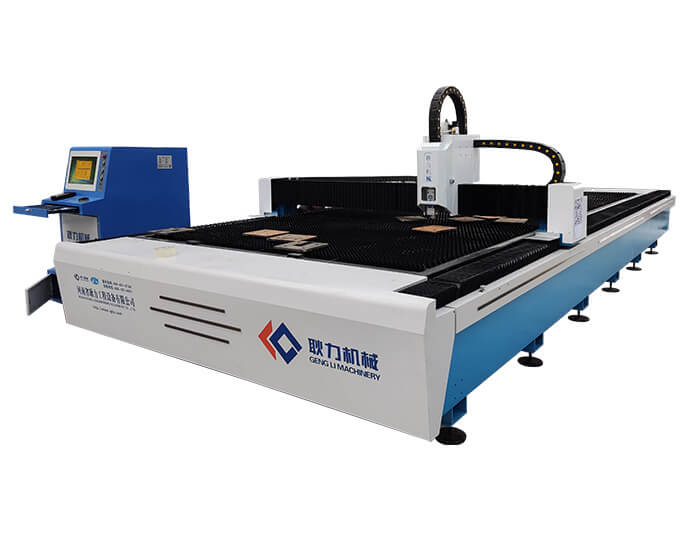

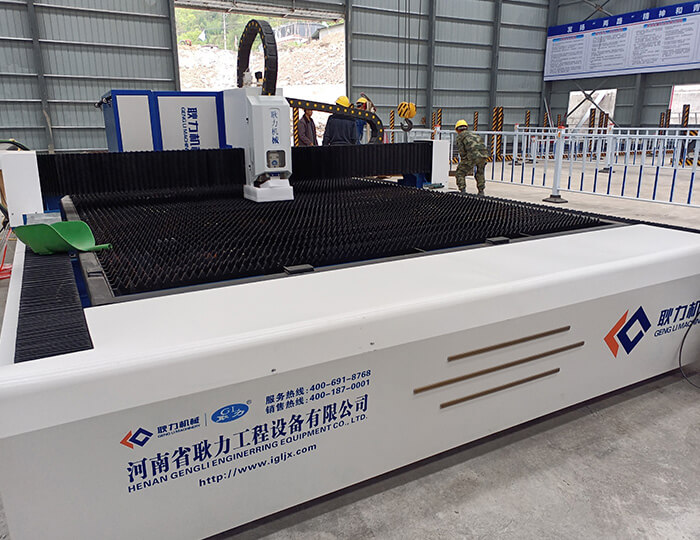

GL-6025H Single table laser cutting machine
  • Total power:≤35KW
  • cutting range:6000mm * 2500mm
  • Maximum idle speed :60000mm/min
  • Total Weight:6000KG
Performance advantages

Very high stability

The top fiber laser is used, with stable performance, the service life of key components can reach 80,000 hours, and the laser is maintenance free.

The top fiber laser is used, with stable performance, the service life of key components can reach 80,000 hours, and the laser is maintenance free.

Imported servo motor and oriented transmission mechanism are adopted, and the cutting precision is high.

Low maintenance cost

Very low maintenance costs, no laser working gas; optical fiber transmission, no need for reflective lenses, saving a lot of maintenance costs.

Various graphics or texts can be processed

Various graphics or texts can be processed
Technical parameters
Model GL-6025HP-3000W
Input power 380V±10% 50Hz±1%
Total power ≤35KW
Effective cutting range 6000mm * 2500mm
transfer method Servo-driven rack and pinion transmission
Number of racks 2500mm×66
Cutting speed 1-60000mm/min(depending on material)
Maximum idle speed 60000mm/min
Cutting thickness Carbon steel ≤18mm(oxygen)
Stainless steel ≤8mm(nitrogen or air)
X/Y repeat positioning accuracy ±0.03mm/full length
X/Y maximum acceleration 0.8G
X/Y positioning accuracy ±0.03mm
Total Weight ≈6000KG
Maximum load of machine tool 2500KG
The size of the whole machine 7500mm×3000mm×1500mm
Z axis travel 120mm
Total power protection level IP54
Support graphics format DXF, etc.(AutoCAD & Coreldraw software)
Working gas Air, nitrogen, oxygen
